| SPECIFICATIONS | |
| GENERAL | |
| Brand | Zebra |
| Model | Zebra DS9908 |
| Scanner Type | QR & Barcode Scanner |
| PERFORMANCE CHARACTERISTICS | |
| Scan Angle | Unmentioned |
| Scanning Speed | Unmentioned |
| Print Contrast | 16% minimum reflective difference |
| Interface(s) | USB Certified, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS-485 |
| 1D Barcode | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, |
| UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) | |
| 2D Barcode | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, |
| DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes | |
| TECHNICAL INFO | |
| Connectivity Mode | Corded |
| Depth of Field | 3 mil (Code 39), 3 mil (Code 128), 6 mil (Data Matrix), 6 mil (QR) |
| PHYSICAL DESCRIPTION | |
| Indicators | Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume) |
| Cable | Unmentioned |
| Stand | No |
| Color | Midnight Black |
| Dimensions | 203 x 132 x 94mm |
| Weight (Kg) | 330 gm |
| POWER | |
| Input Voltage | 4.5 – 5.5VDC |
| Operating Current | 321mA (typical) |
| WARRANTY INFORMATION | |
| Warranty | 1 year |
Description

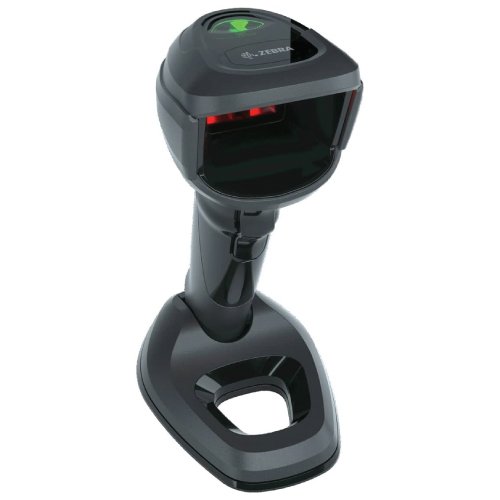

Zebra DS9908 DS9908R CORDED HYBRID IMAGER Hands-Free Scanners
BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN
Today’s shoppers want short lines, speedy transactions, and attentive service. Deliver it all with the DS9900 Series — the scanner built from the ground up for handheld and hands-free use. You get top performance, whether associates pass items in front of the scanner or pick them up to scan merchandise on the counter or in a cart.
And industry-leading scanning, seamless switching between modes, an optional RFID model, and unrivaled management tools drive throughput and service to a new level.
SUPERIOR PERFORMANCE
An 800 MHz microprocessor, high-resolution megapixel sensor, and exclusive PRZM Intelligent Imaging technology deliver unparalleled performance on 1D, 2D, and Digimarc® barcodes — even if they are poorly printed or damaged. And with rapid-fire first-pass read rates and the widest field of view in its class, it’s easy to keep checkout lines moving.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALLED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware, and format data for your application. Right out of the box, the scanner is configured for common applications, and auto-host detects cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
