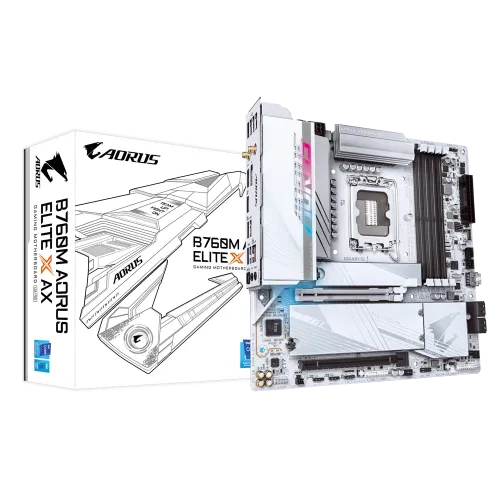

GIGABYTE B760M A ELITE X AX DDR5 MOTHERBOARD
Original price was: 28,000.00৳ .27,700.00৳ Current price is: 27,700.00৳ .
Key Features
- Model: B760M AORUS ELITE X AX
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 128GB 8266(OC)
- Graphics Output: 2x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip, Realtek Wi-Fi 6E RTL8852CE
Specification
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: |
|
| M.2 Socket | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 2x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Chipset: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 ports on the back panel – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0/1.2) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Intel Wi-Fi 6E AX211 (For PCB rev. 1.1/1.3) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard |
|
| Supported Storage | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Internal I/O Ports | internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x HDMI port 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description
The GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is the pinnacle of performance and versatility, with its LGA1700 socket catering to 14th, 13th, and 12th generation Intel processors. Its robust construction ensures smooth compatibility with the newest computing powerhouses. It holds up to 128GB of DDR5 RAM, clocked at an incredible 7600MHz (OC) for unequaled memory bandwidth, in four slots. With one HDMI and one DisplayPort connection, this motherboard provides flexible connectivity options for clear displays and lifelike graphics. Thanks to technologies like the Realtek 2.5GbE LAN chip and Intel Wi-Fi 6E AX211, it delivers lightning-fast networking capabilities required for online gaming and multimedia streaming. With a digital twin 14+1+1 phases VRM solution and dual-channel DDR5 support, this motherboard ensures stable power delivery and memory performance. Its PCIe UD Slot X provides increased strength for graphics cards, and its EZ-Latch Click and EZ-Latch Plus features make it easy to install and remove PCIe slots and M.2 heatsinks. While the UC BIOS offers a simple user interface with Quick Access features, the Sensor Panel Link streamlines the setup process for in-chassis panels. With features like extended connectivity options, fast networking capabilities, efficient thermal management solutions, ultra-fast storage options, and dependable audio output, the GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is designed for enthusiasts and professionals who demand the best possible performance, dependability, and flexibility from their computing experience.
| Brands | GIGABYTE |
|---|
