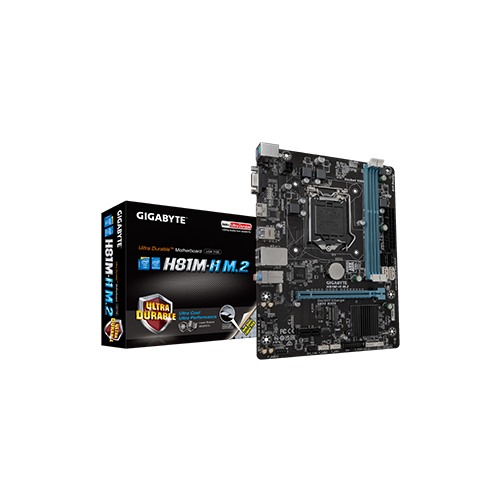

Gigabyte H81M-H M.2 rev. 1.0 LGA1150 Motherboard

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with the CPU

(Please refer to “CPU Support List” for more information.)

Chipset

1. Intel® H81 Express Chipset

Memory

1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer to “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160
   * Support for HDMI 1.4a version.
3. The maximum shared memory of 1 GB

Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot

(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support)
2. 2 x SATA 6Gb/s connectors (SATA3 0/1)
3. 2 x SATA 3Gb/s connectors (SATA2 2/3)
   * The M2A connector shares bandwidth with the SATA3 0 connector. The SATA3 0 connector will become unavailable when an SATA SSD is installed in the M2A connector.
   Refer to “2-7 Internal Connectors,” and “8) M2A (M.2 Socket 3 Connector),” for the installation notices for the M.2 and SATA connectors.

USB

Chipset:

1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 2 x SATA 6Gb/s connectors
5. 2 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 2 x USB 2.0/1.1 headers
11. 1 x serial port header
12. 1 x Clear CMOS jumper
13. 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1. 1 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for Q-Flash
2. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   USB Blocker
   Smart TimeLock
   Smart Recovery 2
   Support for ON/OFF Charge

Bundled Software

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System

1. Support for Windows 10/7

Form Factor

1. Micro ATX Form Factor; 23.0cm x 17.5cm
